Full-height office communications rack with switching, firewall, UPS and a console — A rack you can inherit — labelled, powered, and not a pile of white boxes.

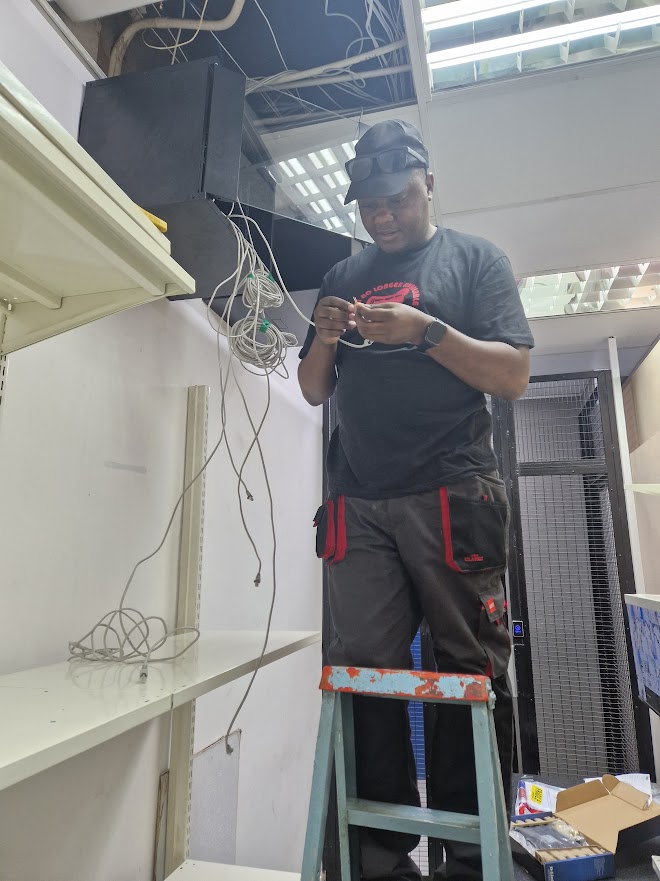

Technician on a ladder terminating network cabling into a ceiling-mounted cabinet — Ceiling cabinet work from a ladder, not a stock server-room aisle.

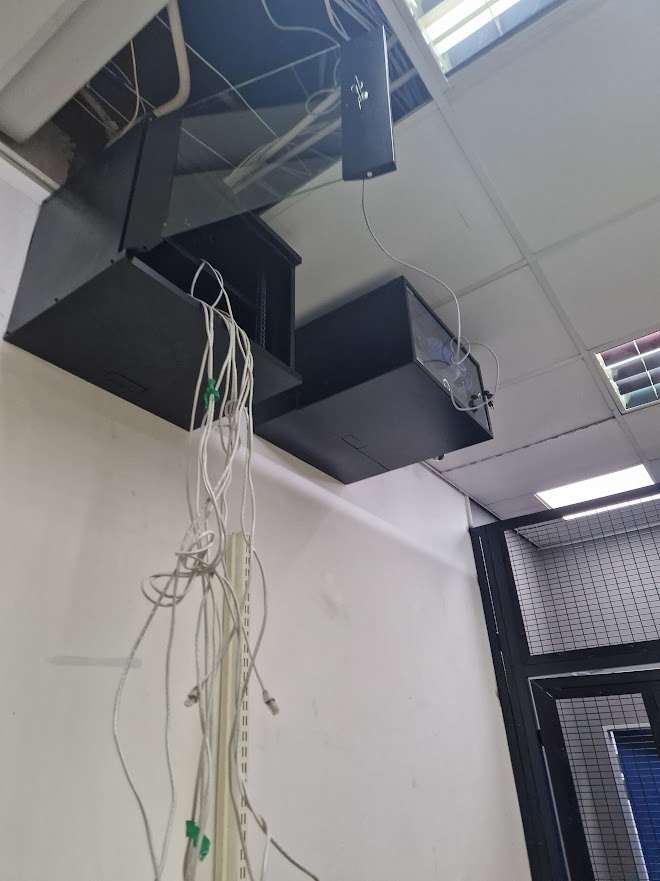

Ceiling-mounted network cabinets with copper drops running down a wall trunking — Cabinets in the void, drops in trunking.

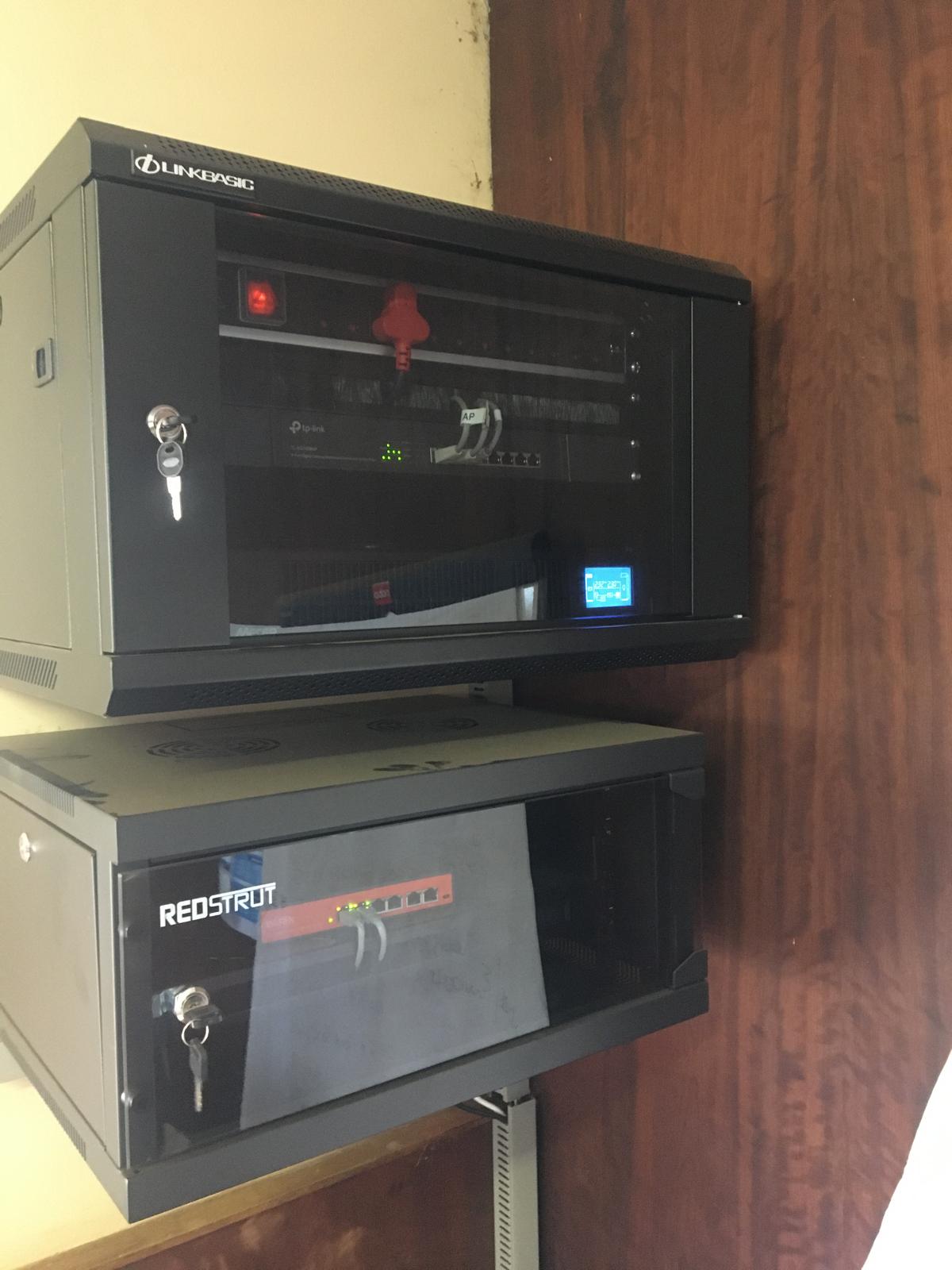

Stacked wall-mount network cabinets with switching and a firewall visible through glass doors — Wall cabinets when a full rack is more than the room needs.

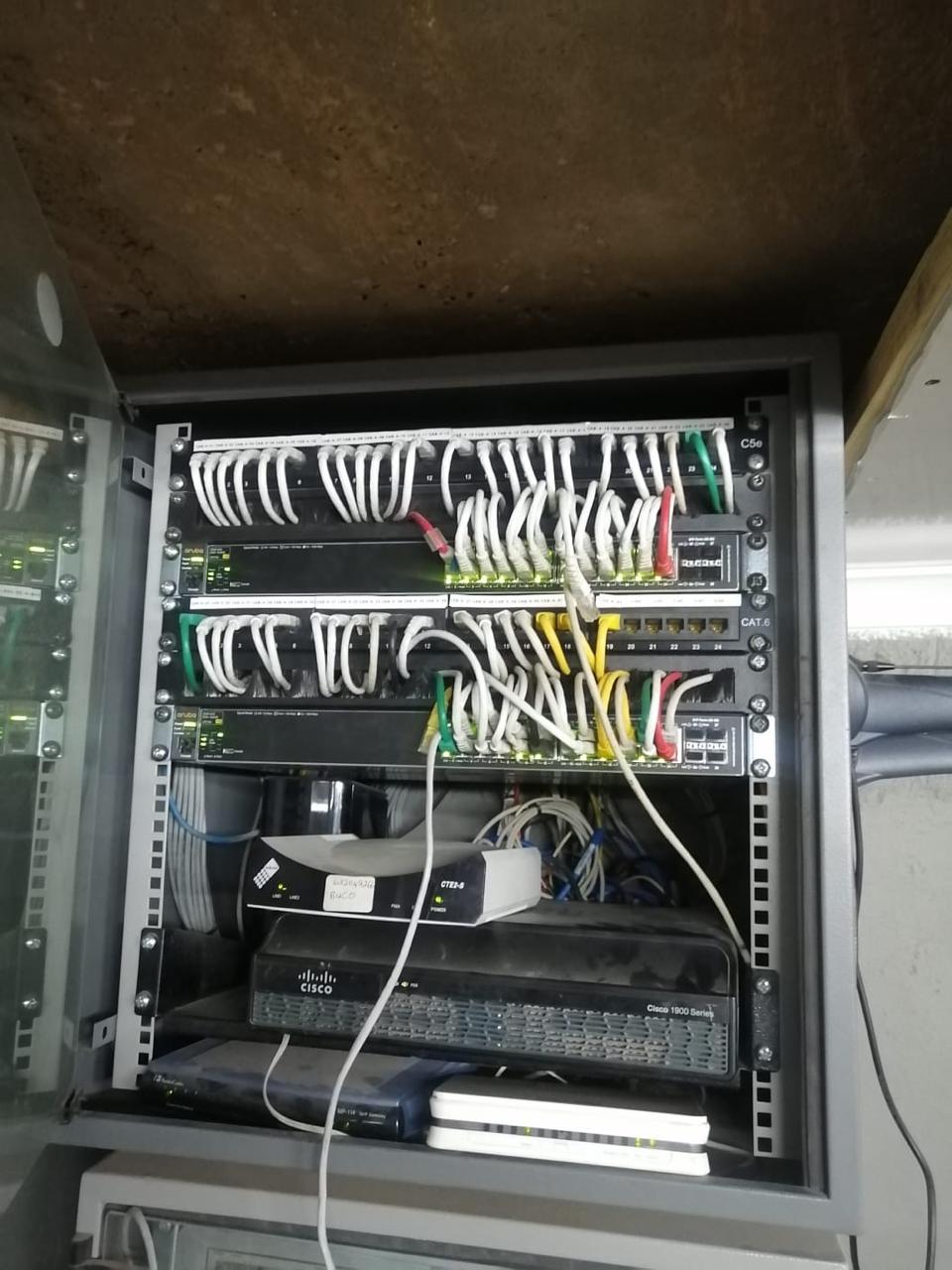

Open wall cabinet showing labelled Cat5e and Cat6 patching into network switches — Patching that is labelled — the next ticket should not start with “which port?”.

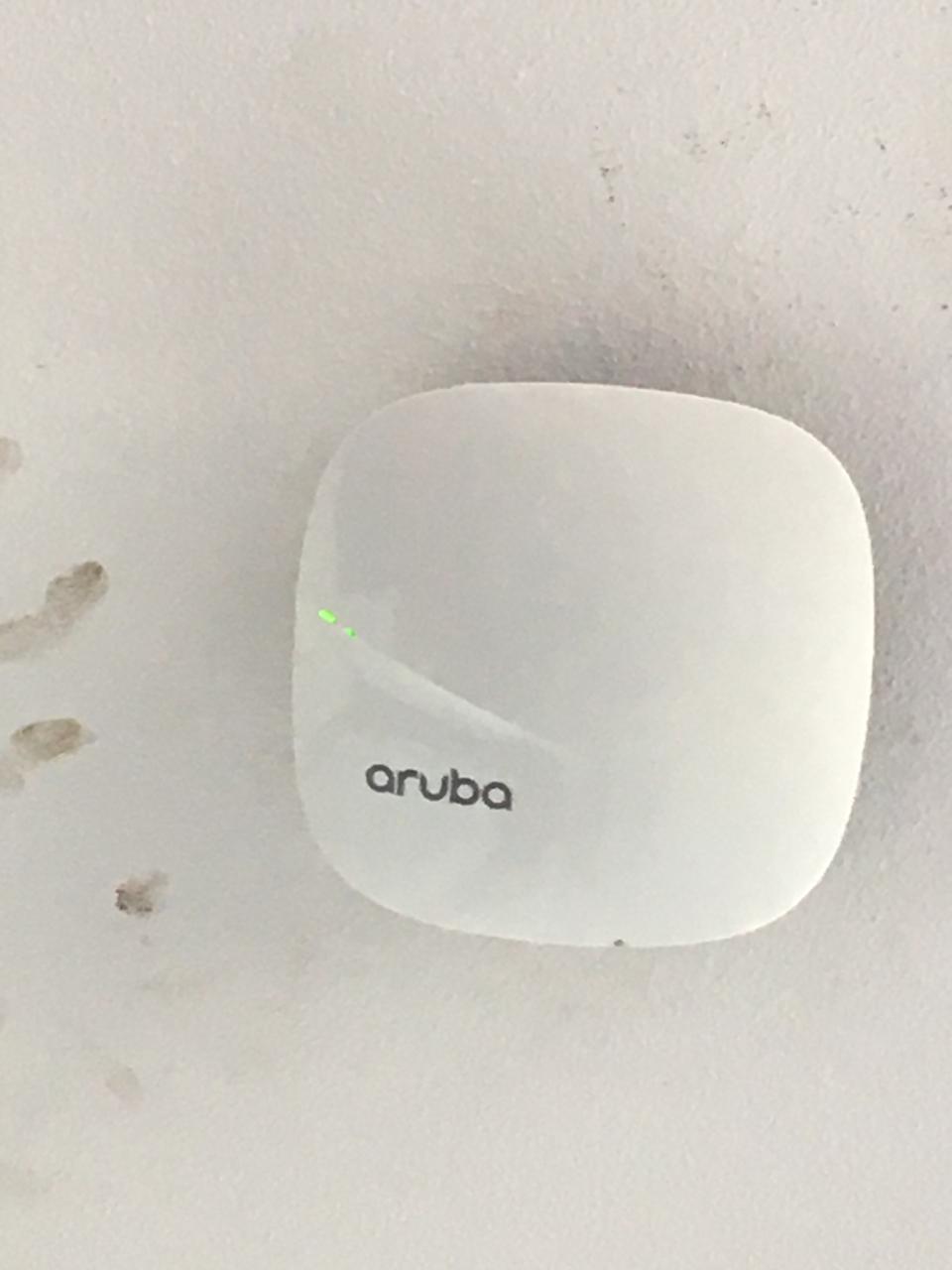

Ceiling-mounted Aruba wireless access point with a live status light — Access point on the ceiling, not a domestic router on a filing cabinet.

Project overview

An office network is only as maintainable as the cabinet the next technician opens. These photographs show ceiling and wall cabinets, ladder cabling work, a patched switch stack, a full comms rack and a ceiling access point.

Challenge

Growing offices accumulate routers on shelves, unmarked fly-leads, and Wi-Fi that dies when the boardroom fills. Support then means guessing which white box is live.

Environment

South African offices and fitted-out commercial floors. Organisation names withheld. The photos show ceiling-void cabinets, wall racks and a floor-standing comms cabinet — typical of sites we actually terminate.

Solution

We terminate into lockable cabinets, patch to labelled switches, lift cabling off the floor, and place business access points on the ceiling rather than a domestic router on a cupboard.

Technologies

Structured copper (Cat5e / Cat6 as the site requires), wall and ceiling cabinets, switching, UPS where the rack includes it, and ceiling-mount business Wi-Fi (including Aruba hardware on sites that already standardise on it). Naming a vendor describes what is in the photo — not an official partnership badge.

Implementation

Cabinet positions are agreed with the floor, then cabling, then active gear, then access points. Work on a live floor is done from a ladder with the void opened, not “after hours if we remember”.

Outcome

Cabinets are mounted, copper is patched, and wireless is on the ceiling. We do not publish a drop count or a “99.9% uptime” figure from these photographs.

Services involved

Client identity is withheld unless they have agreed to be named. Unverified percentages, device counts and uptime figures are not published. Photographs show the work; they are not a coverage map or a performance guarantee.

Office cabinets and structured cabling
